Sandvik Coromant

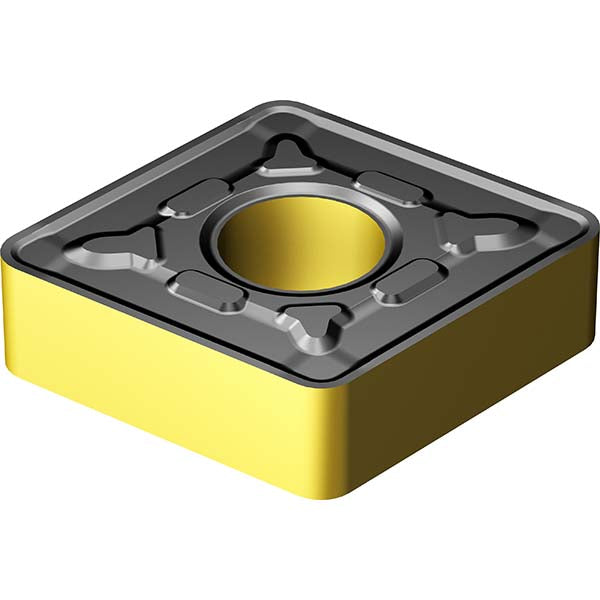

CNMG 19 06 24-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859258
MFR# 7859258ISO/ANSI# CNMG 19 06 24-PR 4415Cat# CNMG 646-PR 4415Series T-Max P
$38.36List $49.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859258 is a CNMG 19 06 24-PR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0938
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 24-PR 4415
Manufacturers catalog numberCNMG 646-PR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
