Sandvik Coromant

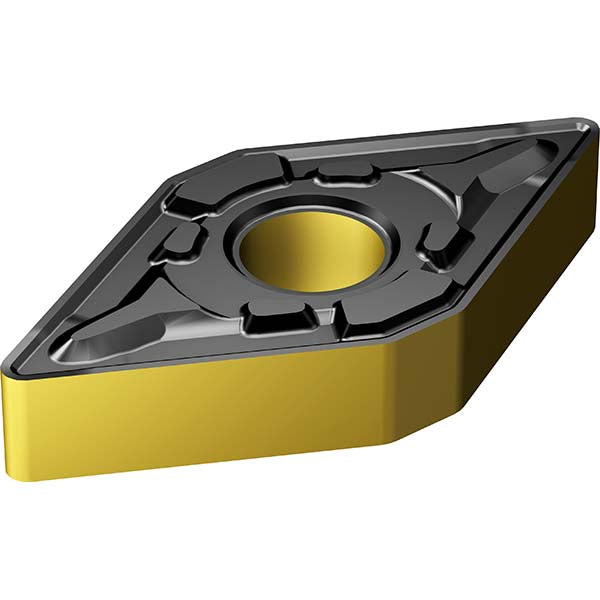

DNMG 15 06 16-PR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859264
MFR# 7859264ISO/ANSI# DNMG 15 06 16-PR 4415Cat# DNMG 444-PR 4415Series T-Max P
$28.63List $36.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859264 is a DNMG 15 06 16-PR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 16-PR 4415
Manufacturers catalog numberDNMG 444-PR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
