Sandvik Coromant

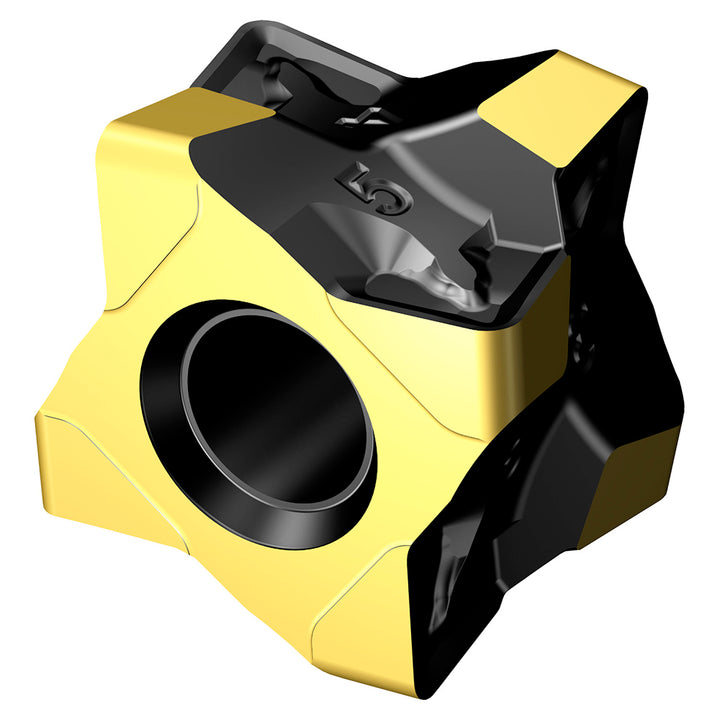

3-80-101108-8-M5 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859288
MFR# 7859288ISO/ANSI# 3-80101108Cat# 3-80-101108-8-M5 4415Series 3-80-M5
$43.88List $56.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859288 is a 3-80-101108-8-M5 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Ansi insert code3-80
Chip breakerM5
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1011
Insert style3-80
Insert thickness0.4331
Iso code3-80-101108-8-M5 4415
Iso insert code3-80101108
Iso size code101108
Manufacturers catalog number3-80-101108-8-M5 4415
Manufacturer grade4415
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Width0.3937
