Sandvik Coromant

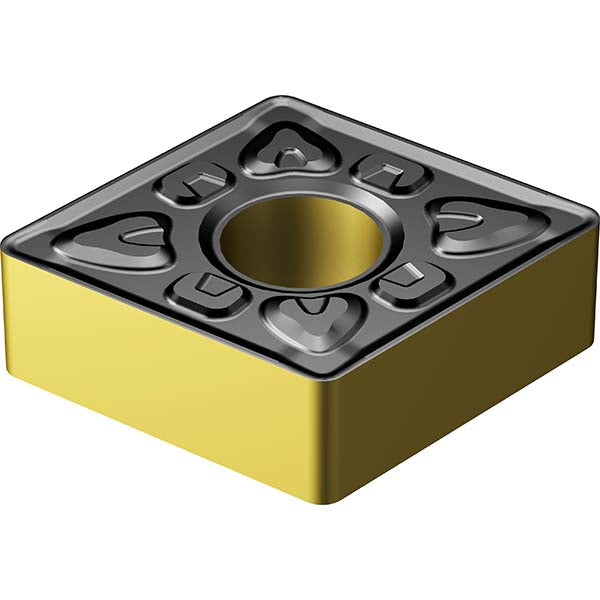

CNMG 12 04 08-XMR 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7859298
MFR# 7859298ISO/ANSI# CNMG 12 04 08-XMR 4415Cat# CNMG 432-XMR 4415Series T-Max P
$18.70List $23.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7859298 is a CNMG 12 04 08-XMR 4415 carbide indexable insert, grade 4415, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-XMR 4415
Manufacturers catalog numberCNMG 432-XMR 4415
Manufacturer grade4415
Relief angle0
Tolerance codeM
