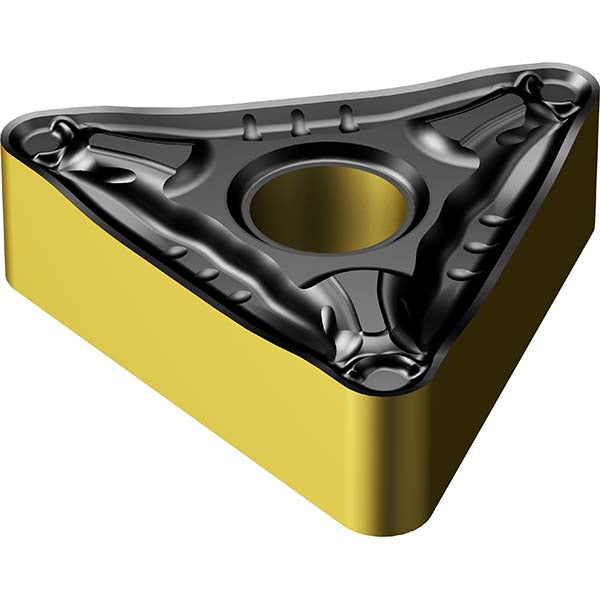

TNMG 16 04 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7860425

Sandvik Coromant

TNMG 16 04 08-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7860425

MFR# 7860425ISO/ANSI# TNMG160408Cat# TNMG 332-PM 4415Series T-Max P

$18.15List $23.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade4415
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7860425 is a TNMG 16 04 08-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.

Specifications

Ansi insert codeTNMG332
Ansi size code332
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1604
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-PM 4415
Iso insert codeTNMG160408
Iso size code160408
Manufacturers catalog numberTNMG 332-PM 4415
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
