Sandvik Coromant

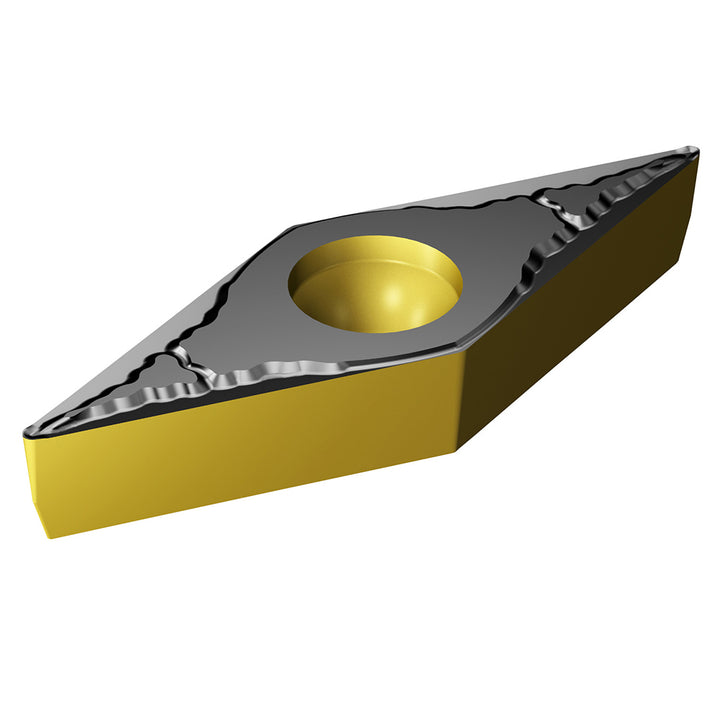

VBMT 16 04 04-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860460
MFR# 7860460ISO/ANSI# VBMT 16 04 04-PM 4415Cat# VBMT 331-PMSeries CoroTurn 107
$26.54List $34.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860460 is a VBMT 16 04 04-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1732
Included angle35
Industry standard numberVBMT 16 04 04-PM 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1604
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 04-PM 4415
Manufacturers catalog numberVBMT 331-PM
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
