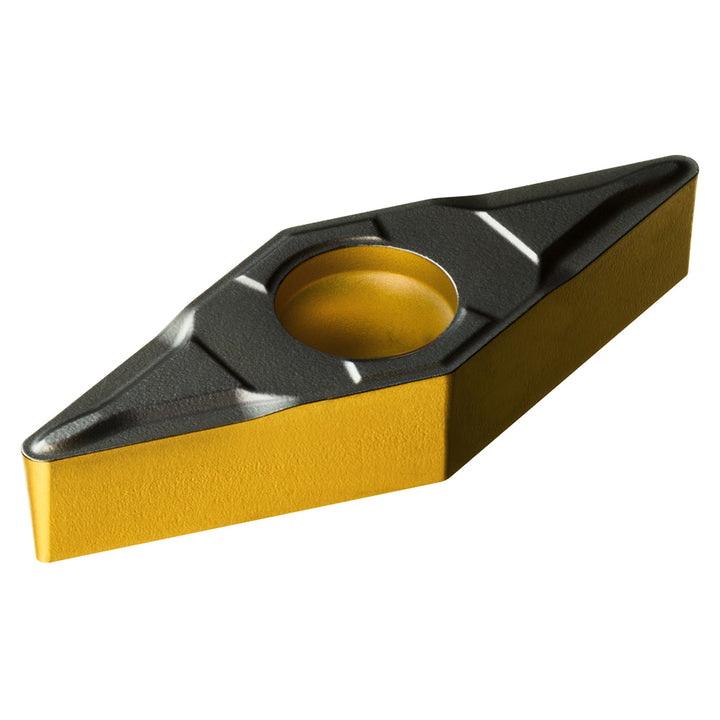

VBMT 16 04 08-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860461

Sandvik Coromant

VBMT 16 04 08-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860461

MFR# 7860461ISO/ANSI# VBMT160408Cat# VBMT 332-PFSeries CoroTurn 107

$26.54List $34.05 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
Grade4415
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7860461 is a VBMT 16 04 08-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeVBMT332
Ansi size code332
Chip breakerPF
Chip breaker operationFinishing
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVBMT 16 04 08-PF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code1604
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-PF 4415
Iso insert codeVBMT160408
Iso size code160408
Manufacturers catalog numberVBMT 332-PF
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
