Sandvik Coromant

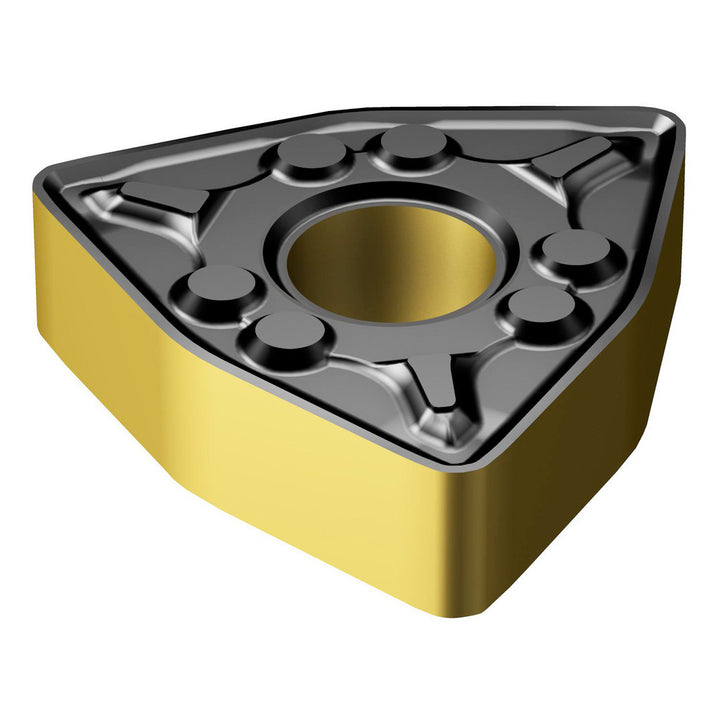

WNMG 08 04 12-WMX 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860474
MFR# 7860474ISO/ANSI# WNMG 08 04 12-WMX 4415Cat# WNMG 433-WMXSeries T-Max P
$24.28List $31.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860474 is a WNMG 08 04 12-WMX 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerWMX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.2030
Included angle80
Industry standard numberWNMG 08 04 12-WMX 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-WMX 4415
Manufacturers catalog numberWNMG 433-WMX
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
