Sandvik Coromant

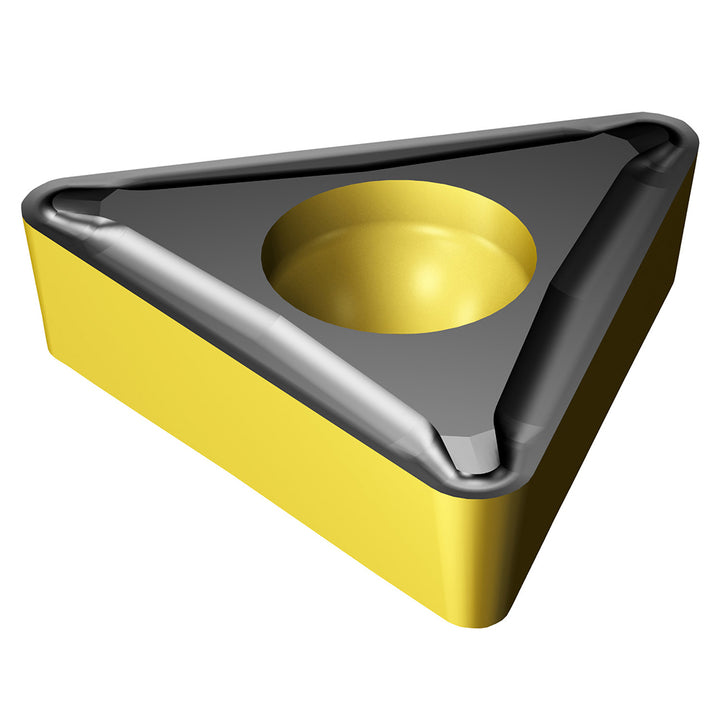

TCMT 11 02 04-UF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860483
MFR# 7860483ISO/ANSI# TCMT 11 02 04-UF 4415Cat# TCMT 2(1.5)1-UFSeries CoroTurn 107
$16.06List $20.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860483 is a TCMT 11 02 04-UF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Hole diameter0.1102
Included angle60
Industry standard numberTCMT 11 02 04-UF 4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1102
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 04-UF 4415
Manufacturers catalog numberTCMT 2(1.5)1-UF
Manufacturer grade4415
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
