Sandvik Coromant

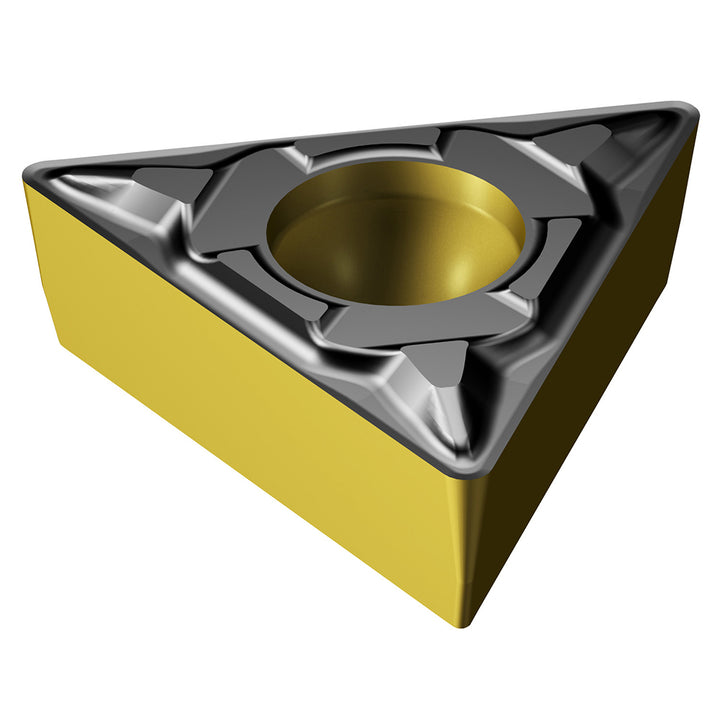

TCMT 11 03 08-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860491
MFR# 7860491ISO/ANSI# TCMT110308PF4415Cat# TCMT222PFSeries CoroTurn 107
$17.49List $22.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860491 is a TCMT 11 03 08-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Included angle60
Industry standard numberTCMT110308PF4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code110308
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 08-PF 4415
Manufacturers catalog numberTCMT222PF
Manufacturer grade4415
Relief angle7
Tolerance codeM
