Sandvik Coromant

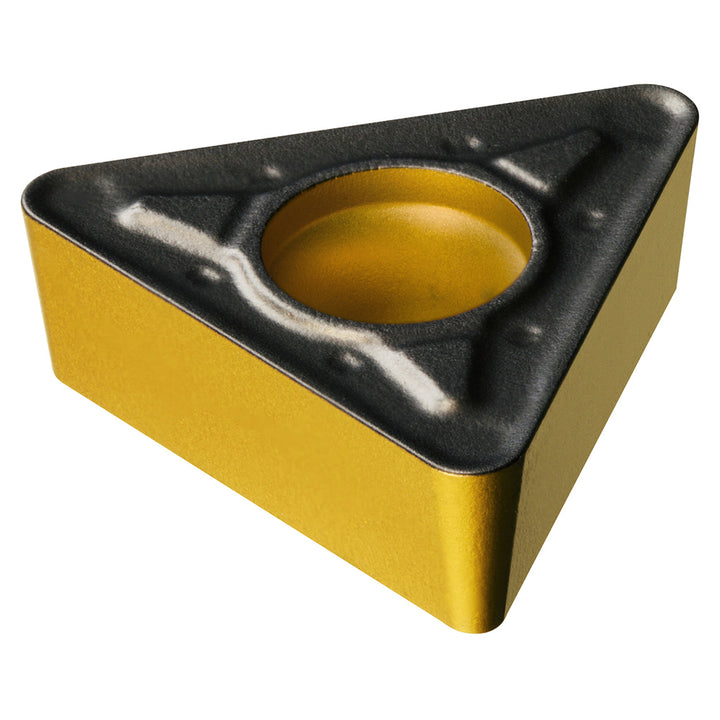

TCMT 11 03 08-PR 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860493
MFR# 7860493ISO/ANSI# TCMT 11 03 08-PR 4415Cat# TCMT 222-PRSeries CoroTurn 107
$15.75List $20.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860493 is a TCMT 11 03 08-PR 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle60
Industry standard numberTCMT 11 03 08-PR 4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1103
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 08-PR 4415
Manufacturers catalog numberTCMT 222-PR
Manufacturer grade4415
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
