Sandvik Coromant

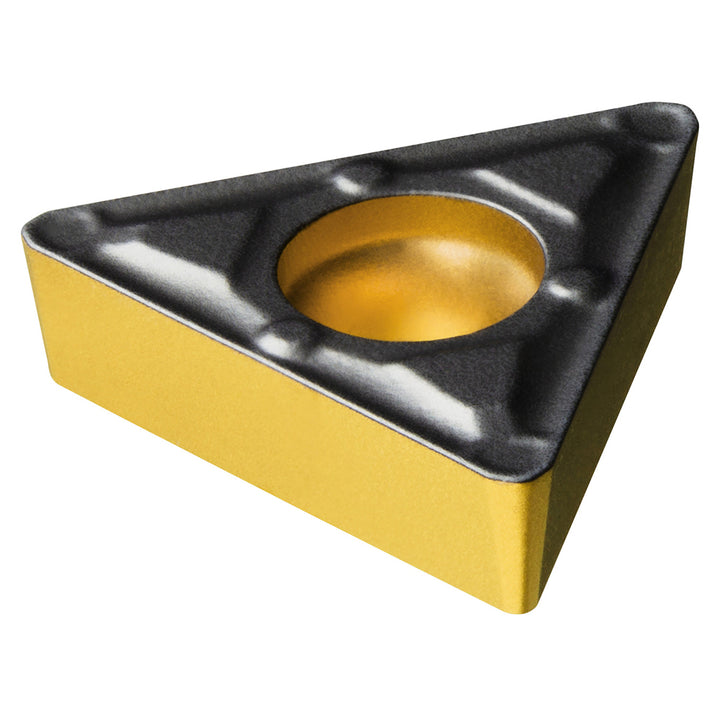

TCMX 09 02 04-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860506
MFR# 7860506ISO/ANSI# TCMX 09 02 04-WF 4415Cat# TCMX 1.8(1.5)1-WFSeries CoroTurn 107
$15.83List $20.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860506 is a TCMX 09 02 04-WF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Included angle60
Industry standard numberTCMX 09 02 04-WF 4415
Inscribed circle in7/32
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code090204
Insert styleTCMX
Insert thickness in3/32
Iso codeTCMX 09 02 04-WF 4415
Manufacturers catalog numberTCMX 1.8(1.5)1-WF
Manufacturer grade4415
Relief angle7
Tolerance codeM
