Sandvik Coromant

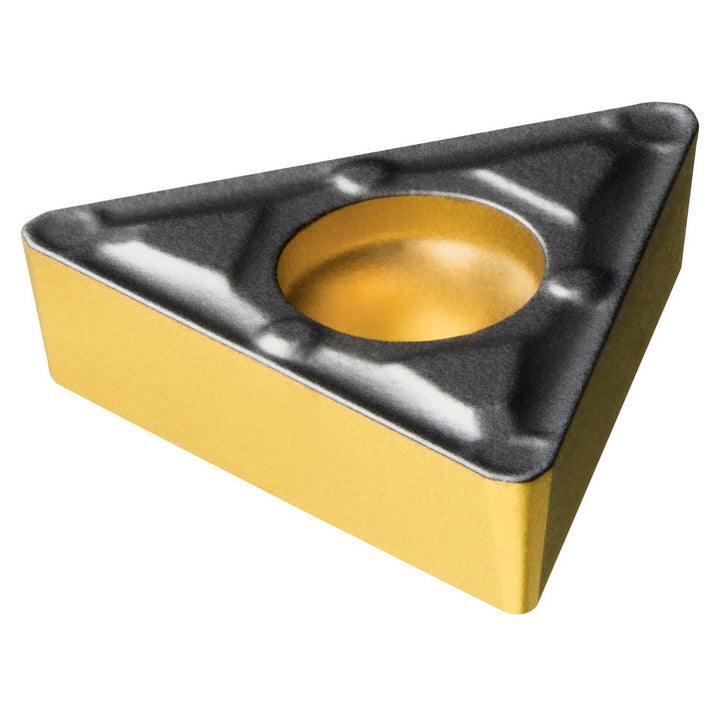

TCMX 16 T3 08-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860510
MFR# 7860510ISO/ANSI# TCMX 16 T3 08-WF 4415Cat# TCMX 3(2.5)2-WFSeries CoroTurn 107
$20.97List $26.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860510 is a TCMX 16 T3 08-WF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Hole diameter0.1732
Included angle60
Industry standard numberTCMX 16 T3 08-WF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code16T3
Insert styleTCMX
Insert thickness in5/32
Iso codeTCMX 16 T3 08-WF 4415
Manufacturers catalog numberTCMX 3(2.5)2-WF
Manufacturer grade4415
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
