Sandvik Coromant
VBMT 11 03 12-PF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860515
MFR# 7860515ISO/ANSI# VBMT 11 03 12-PF 4415Cat# VBMT 223-PFSeries CoroTurn 107
$23.49List $30.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description

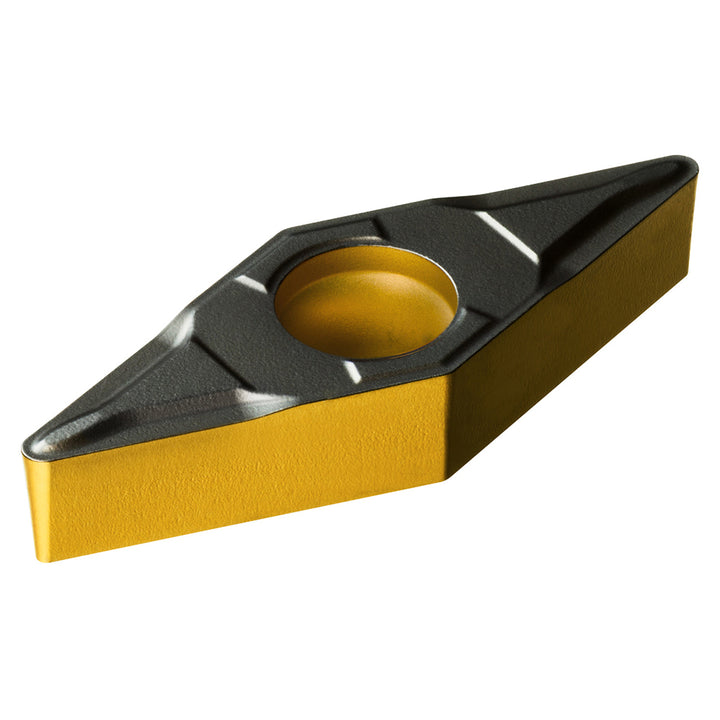

The Sandvik Coromant 7860515 is a VBMT 11 03 12-PF 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle35
Industry standard numberVBMT 11 03 12-PF 4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code110312
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 12-PF 4415
Manufacturers catalog numberVBMT 223-PF
Manufacturer grade4415
Relief angle5
Tolerance codeM
