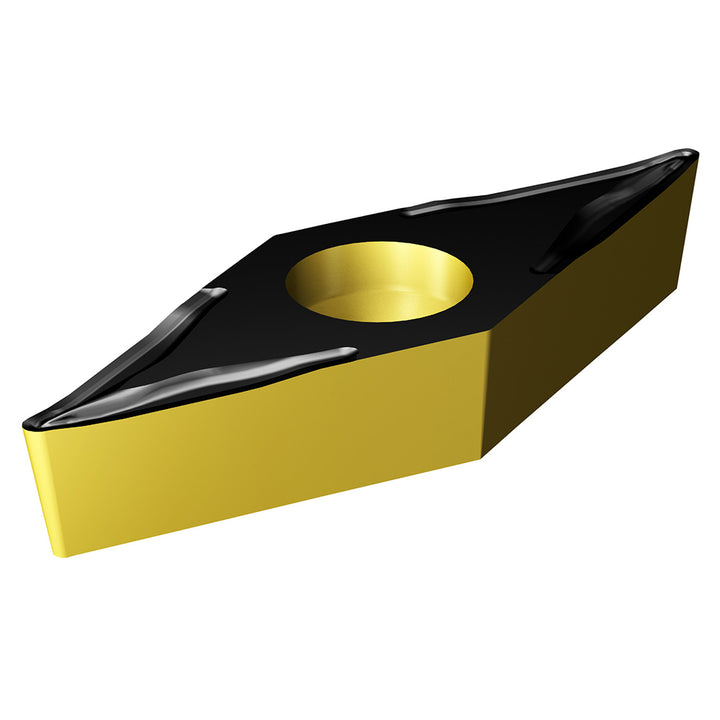

VBMT 16 04 08-UM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860519

Sandvik Coromant

VBMT 16 04 08-UM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860519

MFR# 7860519ISO/ANSI# VBMT160408Cat# VBMT 332-UMSeries CoroTurn 107

$28.67List $36.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
Grade4415
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7860519 is a VBMT 16 04 08-UM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeVBMT332
Ansi size code332
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVBMT 16 04 08-UM 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code1604
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-UM 4415
Iso insert codeVBMT160408
Iso size code160408
Manufacturers catalog numberVBMT 332-UM
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
