Sandvik Coromant

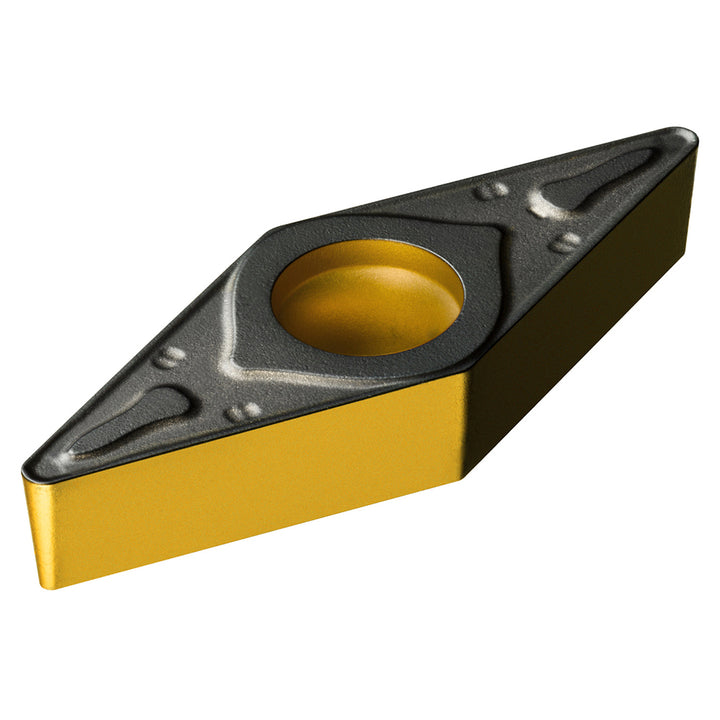

VBMT 16 04 12-PR 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860523
MFR# 7860523ISO/ANSI# VBMT 16 04 12-PR 4415Cat# VBMT 333-PRSeries CoroTurn 107
$28.92List $37.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860523 is a VBMT 16 04 12-PR 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerT
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle35
Industry standard numberVBMT 16 04 12-PR 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code160412
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 12-PR 4415
Manufacturers catalog numberVBMT 333-PR
Manufacturer grade4415
Relief angle5
Tolerance codeM
