Sandvik Coromant
VCMT 11 03 08-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860527
MFR# 7860527ISO/ANSI# VCMT 11 03 08-PM 4415Cat# VCMT 222-PMSeries CoroTurn 107
$24.67List $31.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description

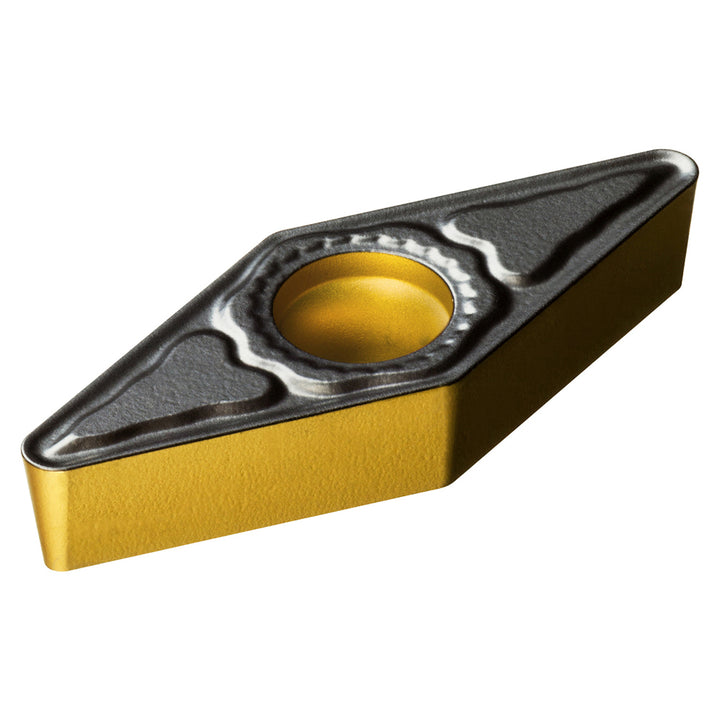

The Sandvik Coromant 7860527 is a VCMT 11 03 08-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1102
Included angle35
Industry standard numberVCMT 11 03 08-PM 4415
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1103
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 11 03 08-PM 4415
Manufacturers catalog numberVCMT 222-PM
Manufacturer grade4415
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
