Sandvik Coromant

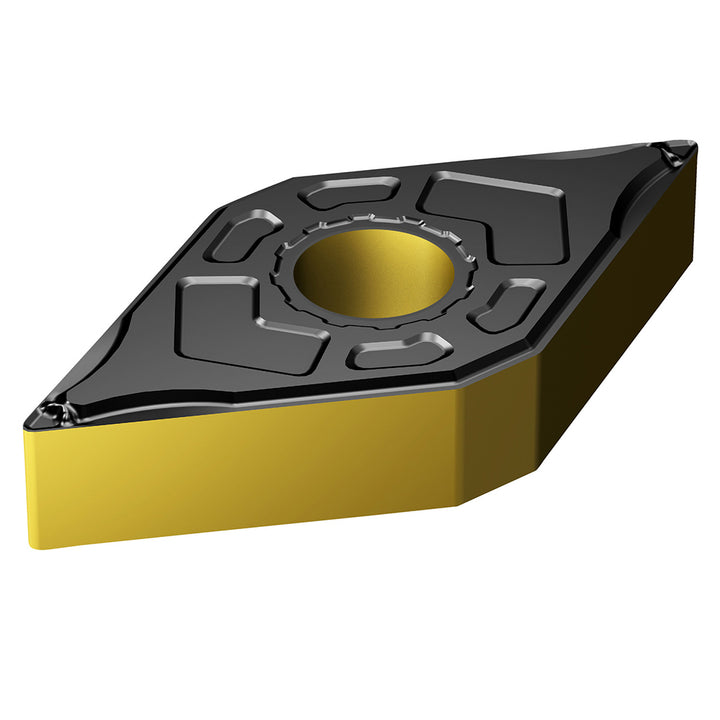

DNMG 11 04 04-LC 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860528
MFR# 7860528ISO/ANSI# DNMG 11 04 04-LC 4415Cat# DNMG 331-LCSeries T-Max P
$19.71List $25.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860528 is a DNMG 11 04 04-LC 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0156
Included angle55
Industry standard numberDNMG 11 04 04-LC 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code110404
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 04-LC 4415
Manufacturers catalog numberDNMG 331-LC
Manufacturer grade4415
Relief angle0
Tolerance codeM
