Sandvik Coromant

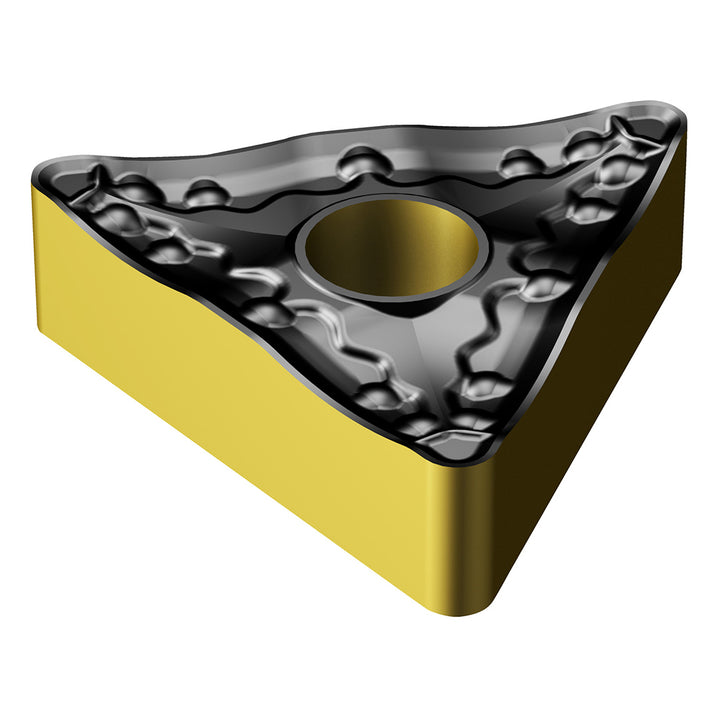

TNMM 22 04 16-PR 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860568
MFR# 7860568ISO/ANSI# TNMM 22 04 16-PR 4415Cat# TNMM 434-PRSeries T-Max P
$23.40List $30.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860568 is a TNMM 22 04 16-PR 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Included angle60
Industry standard numberTNMM 22 04 16-PR 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code220416
Insert styleTNMM
Insert thickness in3/16
Iso codeTNMM 22 04 16-PR 4415
Manufacturers catalog numberTNMM 434-PR
Manufacturer grade4415
Relief angle0
Tolerance codeM
