Sandvik Coromant

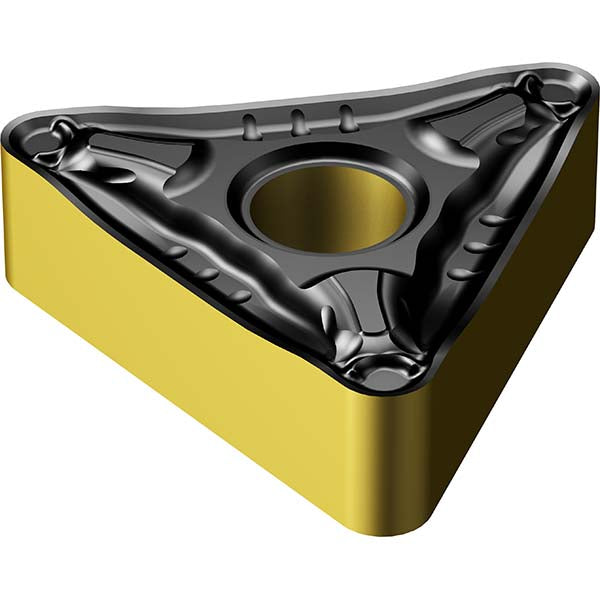

TNMG 16 04 04-PM 4415 Carbide Insert, Grade 4415, TiCN - Sandvik Coromant 7860574
MFR# 7860574ISO/ANSI# TNMG 16 04 04-PM 4415Cat# TNMG 331-PM 4415Series T-Max P
$18.15List $23.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4415
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860574 is a TNMG 16 04 04-PM 4415 carbide indexable insert, grade 4415, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1604
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 04-PM 4415
Manufacturers catalog numberTNMG 331-PM 4415
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
