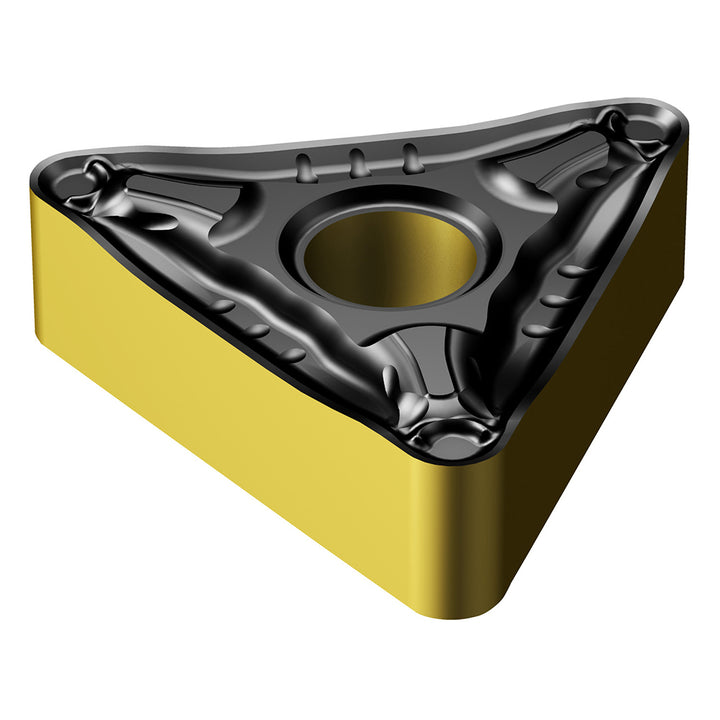

TNMG 22 04 16-PM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860578
MFR# 7860578ISO/ANSI# TNMG 22 04 16-PM 4415Cat# TNMG 434-PMSeries T-Max P
$22.57List $28.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860578 is a TNMG 22 04 16-PM 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Hole diameter0.2030
Included angle60
Industry standard numberTNMG 22 04 16-PM 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code2204
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 16-PM 4415
Manufacturers catalog numberTNMG 434-PM
Manufacturer grade4415
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
