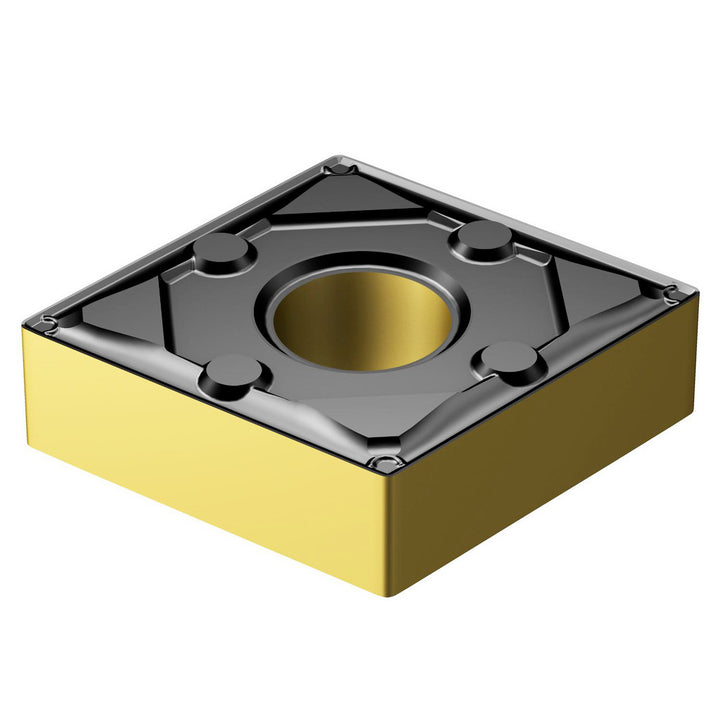

CNMG 09 03 08-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860582

Sandvik Coromant

CNMG 09 03 08-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860582

MFR# 7860582ISO/ANSI# CNMG090308Cat# CNMG 322-WFSeries T-Max P

$15.58List $19.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade4415
MaterialCarbide
CoatingAl2O3

Description

The Sandvik Coromant 7860582 is a CNMG 09 03 08-WF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeCNMG322
Ansi size code322
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle80
Industry standard numberCNMG 09 03 08-WF 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code0903
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG 09 03 08-WF 4415
Iso insert codeCNMG090308
Iso size code090308
Manufacturers catalog numberCNMG 322-WF
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeYes
