Sandvik Coromant

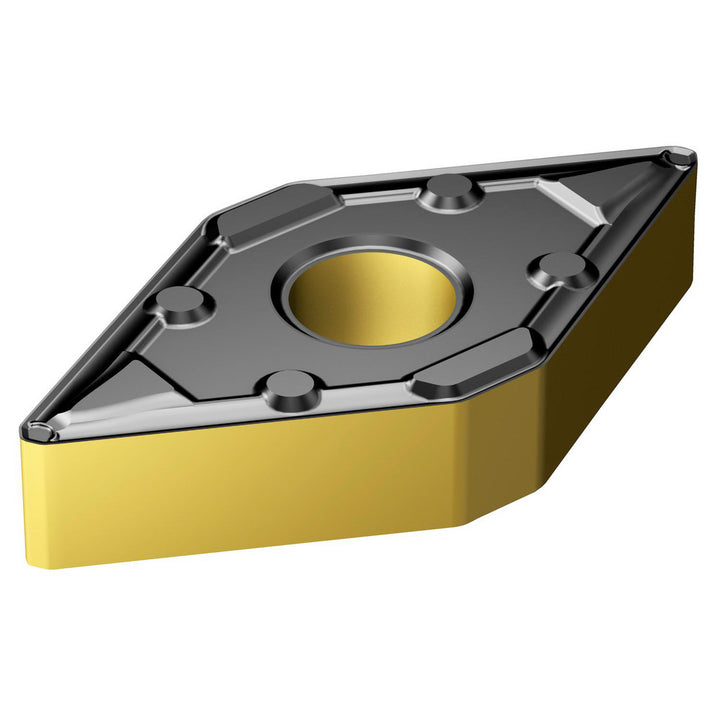

DNMX 15 04 12-WF 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860583
MFR# 7860583ISO/ANSI# DNMX 15 04 12-WF 4415Cat# DNMX 433-WFSeries T-Max P
$30.01List $38.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860583 is a DNMX 15 04 12-WF 4415 carbide indexable insert, grade 4415, Al2O3 coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Hole diameter0.2030
Included angle55
Industry standard numberDNMX 15 04 12-WF 4415
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1504
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 12-WF 4415
Manufacturers catalog numberDNMX 433-WF
Manufacturer grade4415
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
