Sandvik Coromant

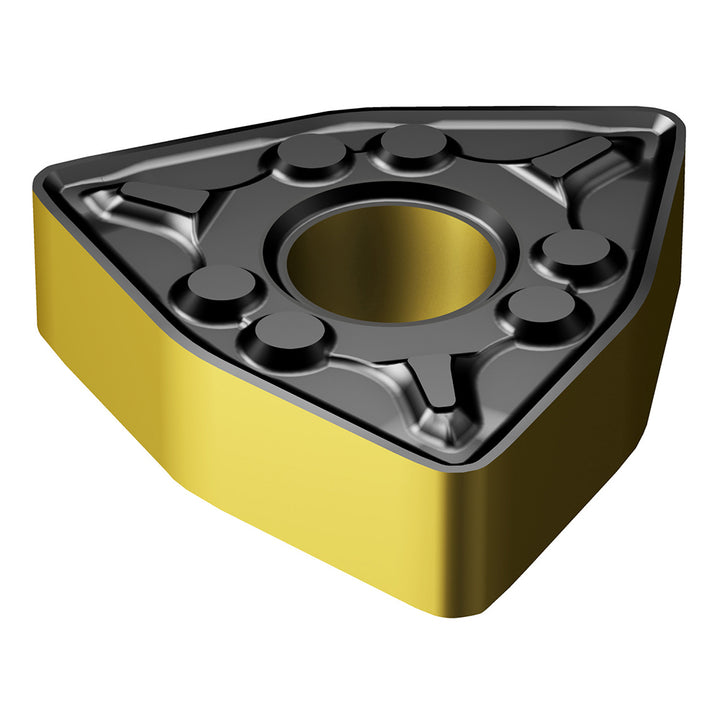

WNMG 06 04 12-WM 4415 Carbide Insert, Grade 4415, Al2O3 - Sandvik Coromant 7860605
MFR# 7860605ISO/ANSI# WNMG 06 04 12-WM 4415Cat# WNMG 333-WMSeries T-Max P
$21.14List $27.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4415
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860605 is a WNMG 06 04 12-WM 4415 carbide indexable insert, grade 4415, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0469
Included angle80
Industry standard numberWNMG 06 04 12-WM 4415
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code060412
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 12-WM 4415
Manufacturers catalog numberWNMG 333-WM
Manufacturer grade4415
Relief angle0
Tolerance codeM
