Sandvik Coromant

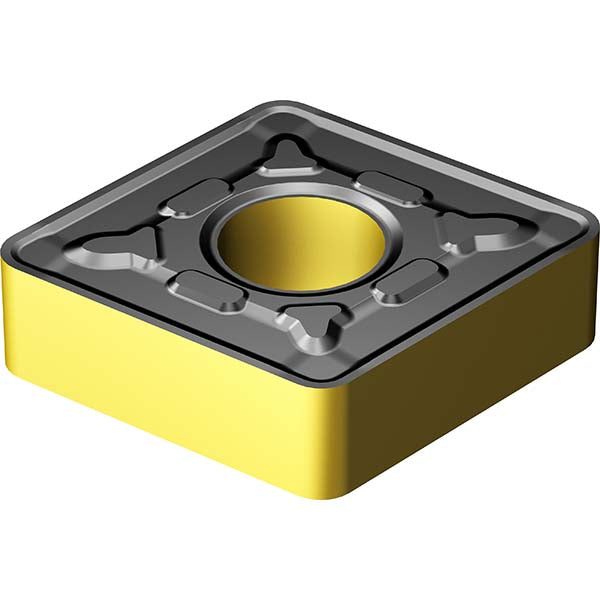

CNMG 19 06 16-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860730
MFR# 7860730ISO/ANSI# CNMG 19 06 16-PR 4425Cat# CNMG 644-PR 4425Series T-Max P
$45.72List $58.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860730 is a CNMG 19 06 16-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1906
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 16-PR 4425
Manufacturers catalog numberCNMG 644-PR 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
