Sandvik Coromant

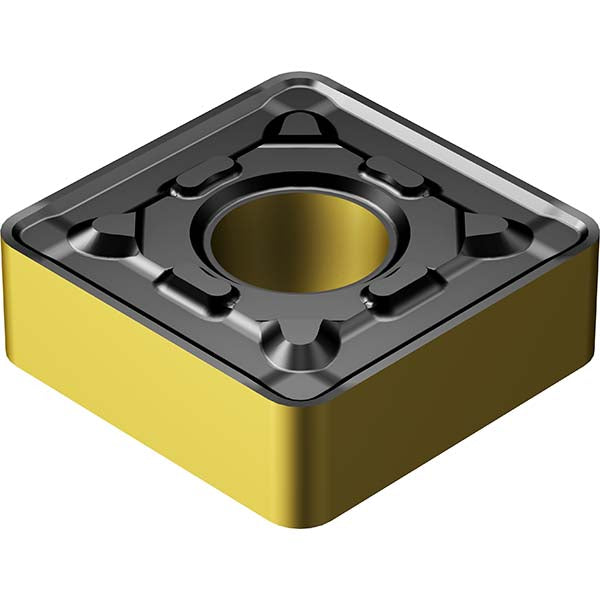

SNMG 12 04 08-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860751
MFR# 7860751ISO/ANSI# SNMG120408Cat# SNMG 432-PR 4425Series T-Max P
$19.14List $24.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860751 is a SNMG 12 04 08-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeSNMG432
Ansi size code432
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeS - Square
Insert size code1204
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 12 04 08-PR 4425
Iso insert codeSNMG120408
Iso size code120408
Manufacturers catalog numberSNMG 432-PR 4425
Manufacturer grade4425
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
