Sandvik Coromant
SNMM 15 06 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860763
MFR# 7860763ISO/ANSI# SNMM 15 06 12-PR 4425Cat# SNMM 543-PR 4425Series T-Max P
$29.64List $38.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description

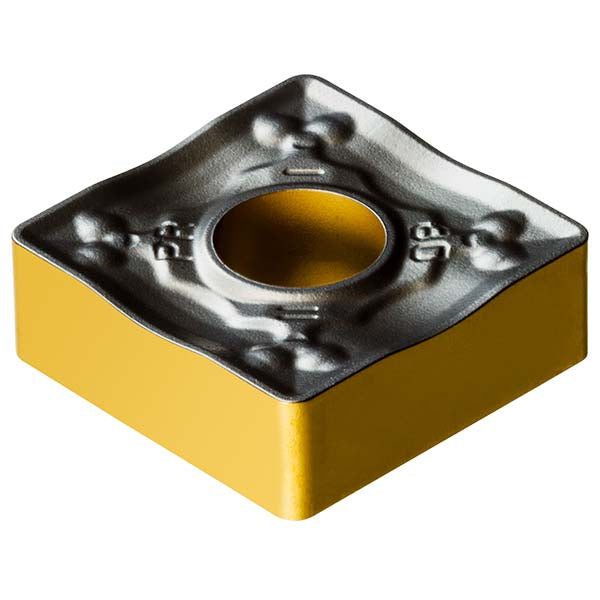

The Sandvik Coromant 7860763 is a SNMM 15 06 12-PR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1506
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM 15 06 12-PR 4425
Manufacturers catalog numberSNMM 543-PR 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
