Sandvik Coromant

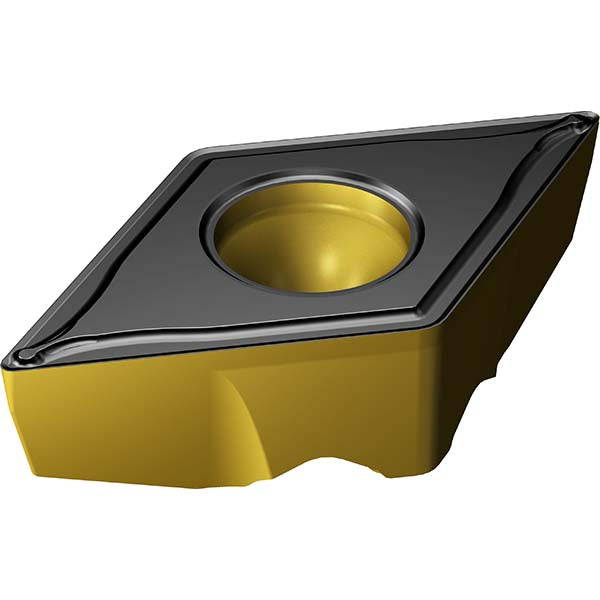

TR-DC1304-F 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860777
MFR# 7860777ISO/ANSI# TRDC1304Cat# TR-DC1304-F 4425Series CoroTurn TR
$24.08List $30.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeD - Diamond (Rhombic) 55-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860777 is a TR-DC1304-F 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTRDC
Chip breakerF
Chip breaker operationFinishing
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1457
Included angle55
Inscribed circle0.4331
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code1304
Insert styleTRDC
Insert thickness0.2175
Iso codeTR-DC1304-F 4425
Iso insert codeTRDC1304
Iso size code1304
Manufacturers catalog numberTR-DC1304-F 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Wiper edgeNo
