Sandvik Coromant

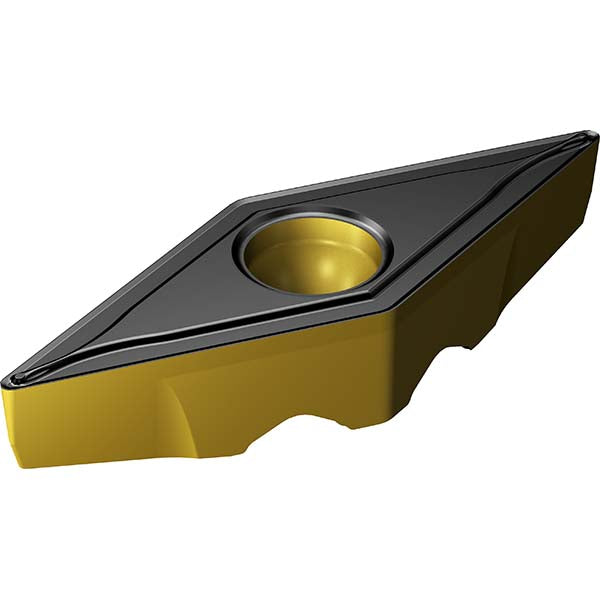

TR-VB1312-F 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860781
MFR# 7860781ISO/ANSI# TR-VB1312-F 4425Cat# TR-VB1312-F 4425Series CoroTurn TR
$27.71List $35.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860781 is a TR-VB1312-F 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Included angle35
Inscribed circle0.3150
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1312
Insert styleTRVB
Insert thickness0.1782
Iso codeTR-VB1312-F 4425
Manufacturers catalog numberTR-VB1312-F 4425
Manufacturer grade4425
Relief angle5
