Sandvik Coromant

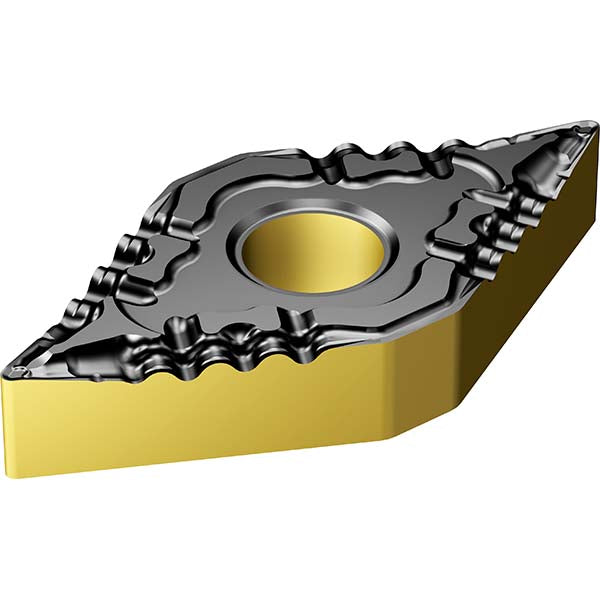

DNMG 15 06 08-PF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860803
MFR# 7860803ISO/ANSI# DNMG 15 06 08-PF 4425Cat# DNMG 442-PF 4425Series T-Max P
$28.51List $36.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860803 is a DNMG 15 06 08-PF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1506
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-PF 4425
Manufacturers catalog numberDNMG 442-PF 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
