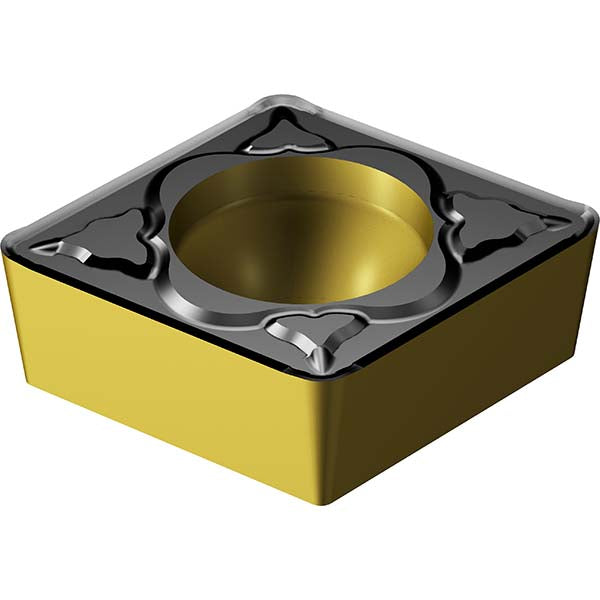

CCMT 06 02 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860810

Sandvik Coromant

CCMT 06 02 08-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860810

MFR# 7860810ISO/ANSI# CCMT060208Cat# CCMT 2(1.5)2-PM 4425Series CoroTurn 107

$15.33List $19.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7860810 is a CCMT 06 02 08-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code0602
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 08-PM 4425
Iso insert codeCCMT060208
Iso size code060208
Manufacturers catalog numberCCMT 2(1.5)2-PM 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
