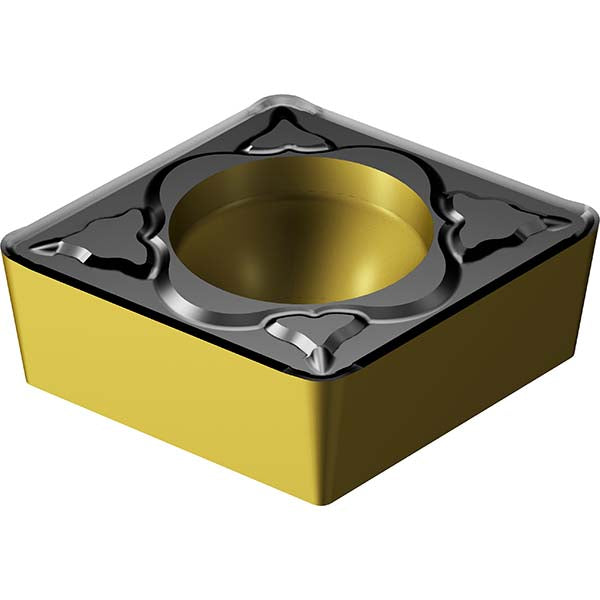

CCMT 12 04 12-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860815

Sandvik Coromant

CCMT 12 04 12-PM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860815

MFR# 7860815ISO/ANSI# CCMT120412Cat# CCMT 433-PM 4425Series CoroTurn 107

$24.88List $31.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7860815 is a CCMT 12 04 12-PM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT433
Ansi size code433
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1204
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 12-PM 4425
Iso insert codeCCMT120412
Iso size code120412
Manufacturers catalog numberCCMT 433-PM 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
