Sandvik Coromant

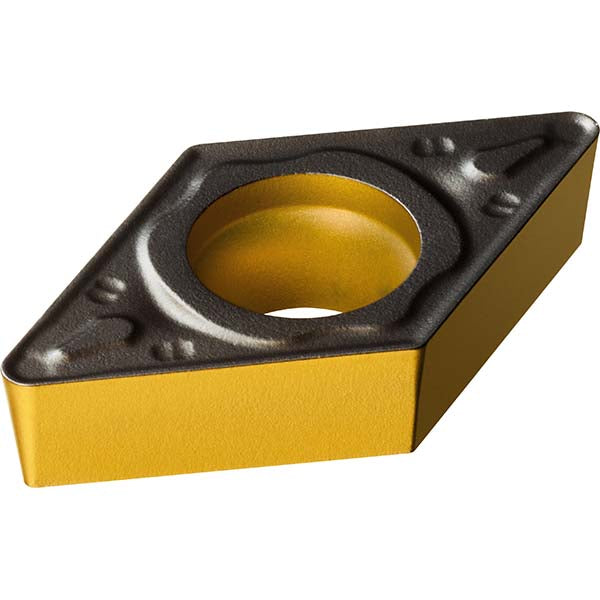

DCMT 11 T3 08-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860831
MFR# 7860831ISO/ANSI# DCMT 11 T3 08-PR 4425Cat# DCMT 3(2.5)2-PR 4425Series CoroTurn 107
$19.06List $24.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860831 is a DCMT 11 T3 08-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code11T3
Insert styleDCMT
Insert thickness0.1563
Iso codeDCMT 11 T3 08-PR 4425
Manufacturers catalog numberDCMT 3(2.5)2-PR 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
