Sandvik Coromant
SCMT 09 T3 08-UM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860873
MFR# 7860873ISO/ANSI# SCMT 09 T3 08-UM 4425Cat# SCMT 3(2.5)2-UM 4425Series CoroTurn 107
$16.77List $21.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description

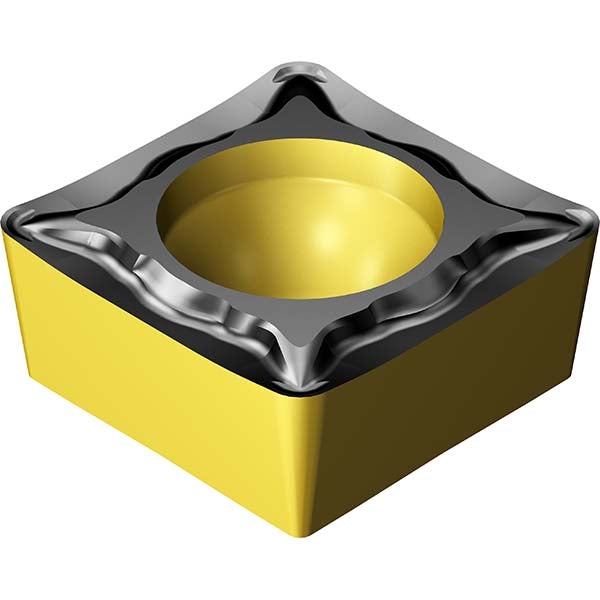

The Sandvik Coromant 7860873 is a SCMT 09 T3 08-UM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code09T3
Insert styleSCMT
Insert thickness0.1563
Iso codeSCMT 09 T3 08-UM 4425
Manufacturers catalog numberSCMT 3(2.5)2-UM 4425
Manufacturer grade4425
Relief angle7
Tolerance codeM
