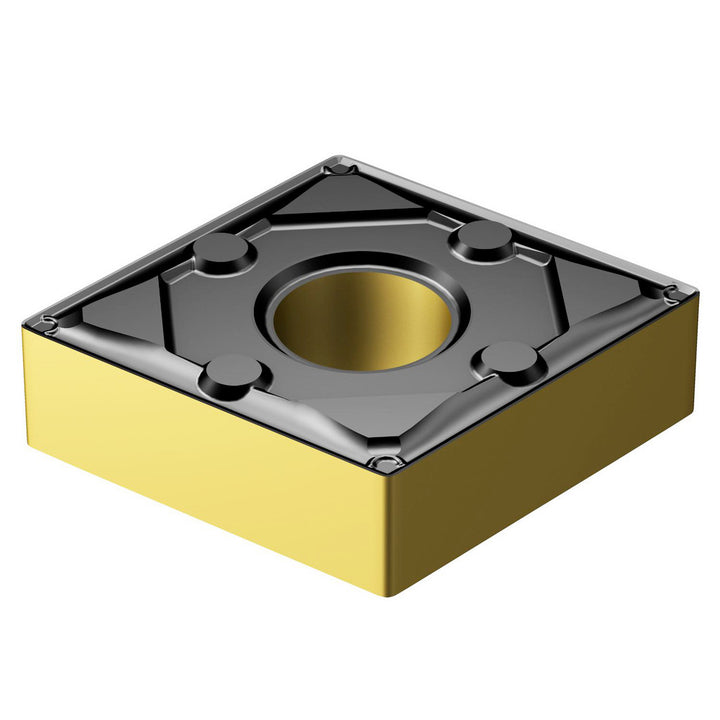

CNMG 12 04 04-WF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860884
MFR# 7860884ISO/ANSI# CNMG120404Cat# CNMG 431-WF 4425Series T-Max P
$23.83List $30.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeC - Diamond (Rhombic) 80-Deg
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860884 is a CNMG 12 04 04-WF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle0.5000
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 04-WF 4425
Iso insert codeCNMG120404
Iso size code120404
Manufacturers catalog numberCNMG 431-WF 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
Tolerance codeM
Wiper edgeYes
