Sandvik Coromant

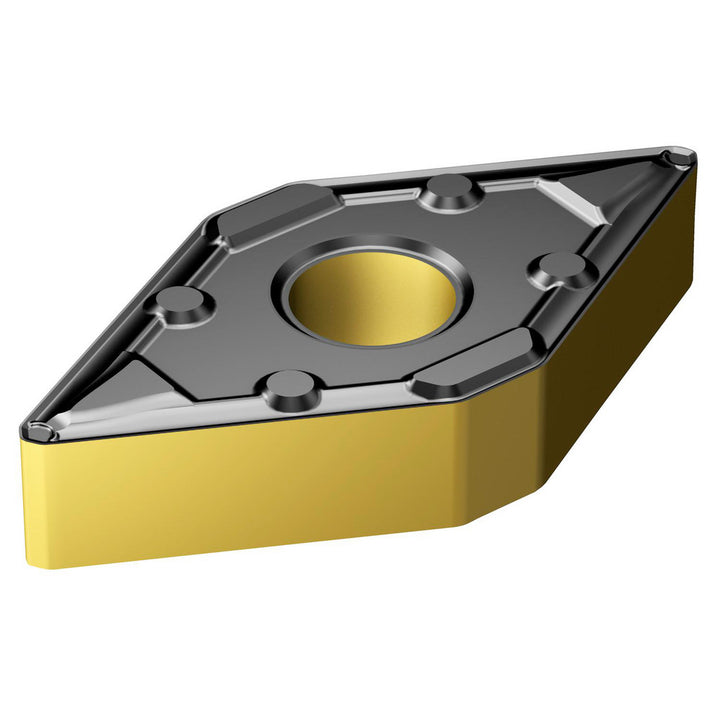

DNMX 11 04 08-WF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860888
MFR# 7860888ISO/ANSI# DNMX 11 04 08-WF 4425Cat# DNMX 332-WF 4425Series T-Max P
$25.18List $32.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860888 is a DNMX 11 04 08-WF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.1500
Included angle55
Inscribed circle0.1500
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 11 04 08-WF 4425
Manufacturers catalog numberDNMX 332-WF 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
