Sandvik Coromant

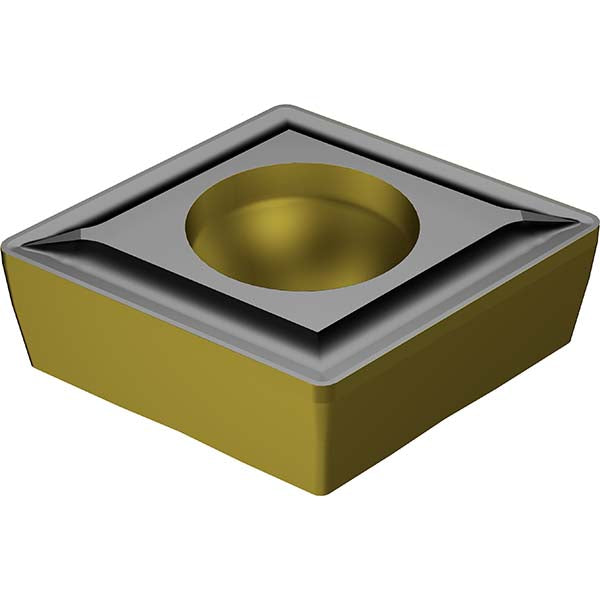

CCMT 09 T3 04-UF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860903
MFR# 7860903ISO/ANSI# CCMT 09 T3 04-UF 4425Cat# CCMT 3(2.5)1-UF 4425Series CoroTurn 107
$16.77List $21.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860903 is a CCMT 09 T3 04-UF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code09T3
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT 09 T3 04-UF 4425
Manufacturers catalog numberCCMT 3(2.5)1-UF 4425
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
