Sandvik Coromant

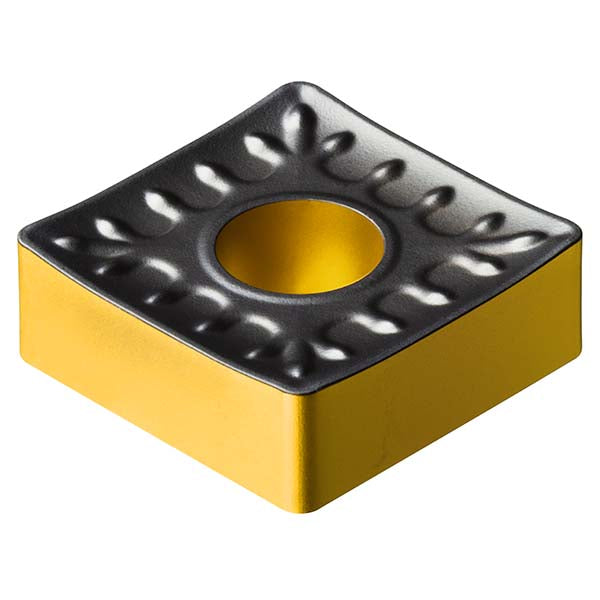

SNMM 19 06 16-QR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860933
MFR# 7860933ISO/ANSI# SNMM 19 06 16-QR 4425Cat# SNMM 644-QR 4425Series T-Max P
$42.96List $55.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860933 is a SNMM 19 06 16-QR 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeSquare
Insert size code1906
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM 19 06 16-QR 4425
Manufacturers catalog numberSNMM 644-QR 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
