Sandvik Coromant

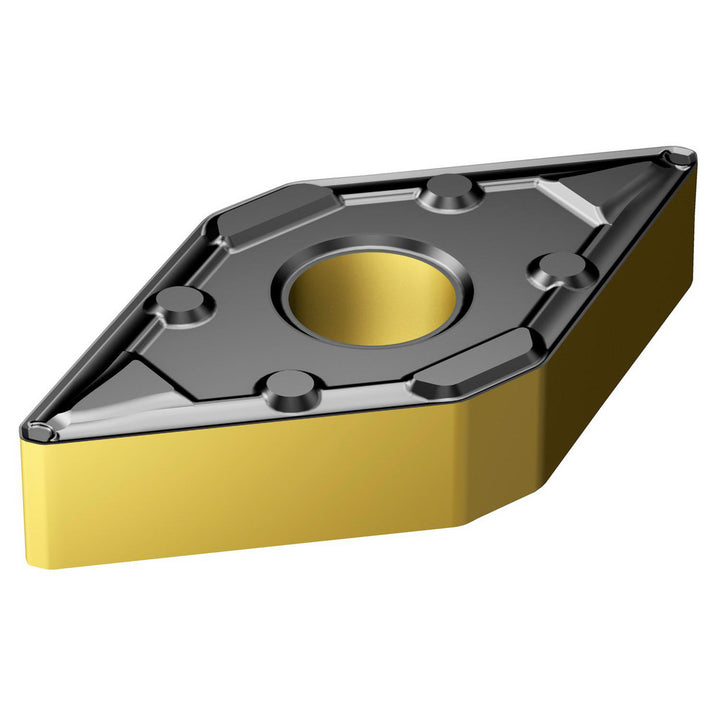

DNMX 15 04 04-WF 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860934
MFR# 7860934ISO/ANSI# DNMX 15 04 04-WF 4425Cat# DNMX 431-WF 4425Series T-Max P
$30.01List $38.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860934 is a DNMX 15 04 04-WF 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0156
Hole diameter0.2030
Included angle55
Inscribed circle0.2030
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1504
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 04-WF 4425
Manufacturers catalog numberDNMX 431-WF 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
