Sandvik Coromant

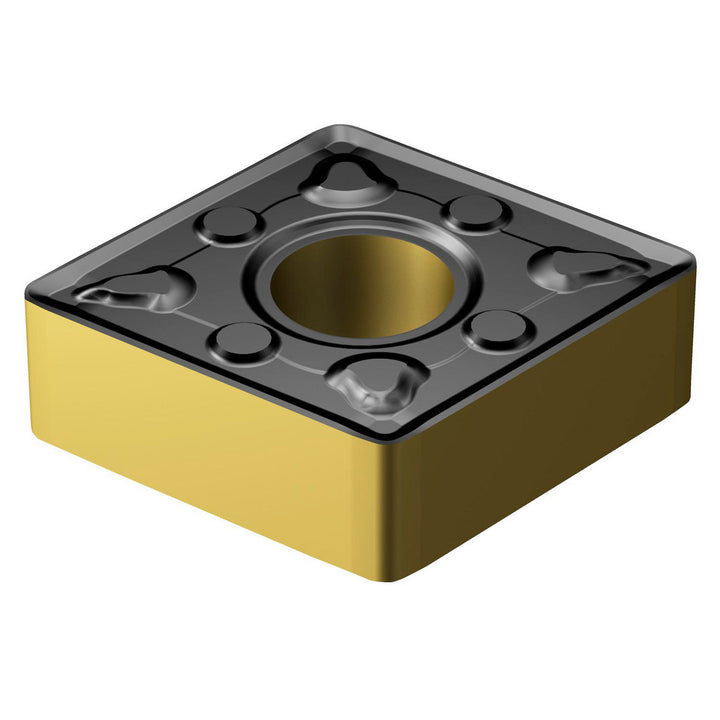

CNMG 12 04 08-WM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860937
MFR# 7860937ISO/ANSI# CNMG 12 04 08-WM 4425Cat# CNMG432WM4425Series T-Max P
$22.07List $28.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860937 is a CNMG 12 04 08-WM 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerWM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Hole diameter0.2030
Included angle80
Inscribed circle0.2030
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1204
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-WM 4425
Manufacturers catalog numberCNMG432WM4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
