Sandvik Coromant

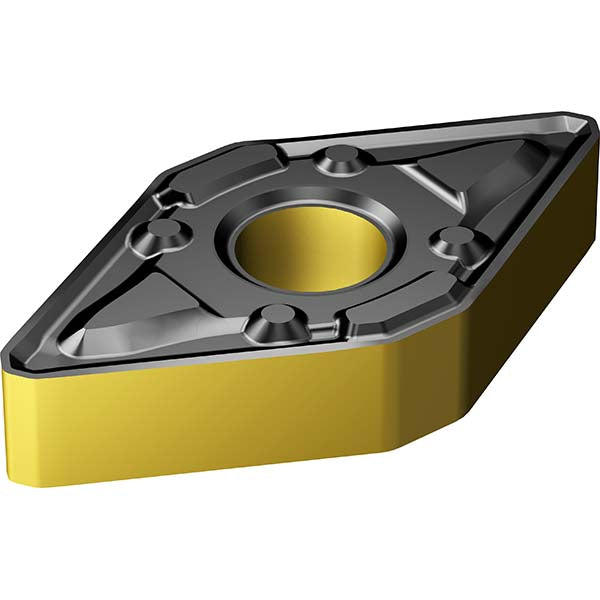

DNMX 11 04 08-WM 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860944
MFR# 7860944ISO/ANSI# DNMX 11 04 08-WM 4425Cat# DNMX 332-WM 4425Series T-Max P
$22.74List $29.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860944 is a DNMX 11 04 08-WM 4425 carbide indexable insert, grade 4425, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0313
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code1104
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 11 04 08-WM 4425
Manufacturers catalog numberDNMX 332-WM 4425
Manufacturer grade4425
Relief angle0
Tolerance codeM
