Sandvik Coromant

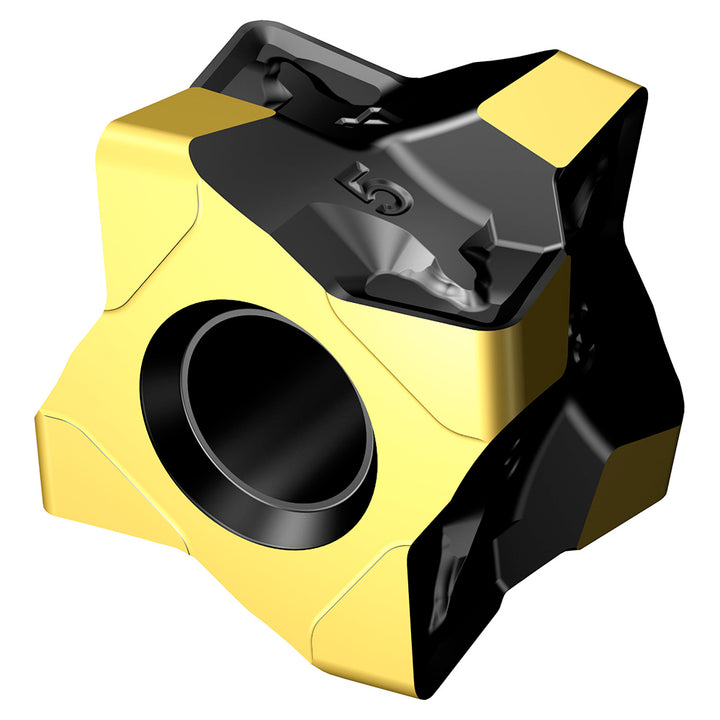

3-80-101112-8-M5W 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7860952
MFR# 7860952ISO/ANSI# 3-80-101112-8-M5W 4425Cat# 3-80-101112-8-M5W 4425Series 3-80-M5W
$50.44List $64.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7860952 is a 3-80-101112-8-M5W 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerM5W
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert size code1011
Insert style3-80
Insert thickness0.4331
Iso code3-80-101112-8-M5W 4425
Manufacturers catalog number3-80-101112-8-M5W 4425
Manufacturer grade4425
Primary workpiece materialSteel
Relief angle0
Width0.3937
