Sandvik Coromant

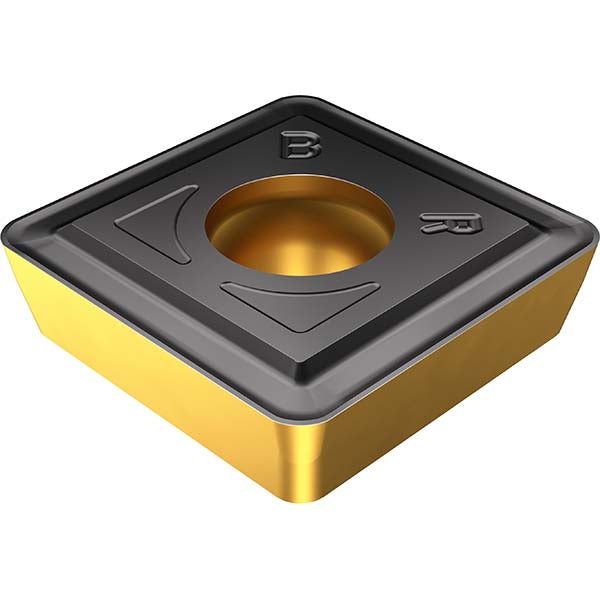

SPMT0606-BR 4425 Solid Carbide Insert, Grade 4425, TiCN/Al2O3/TiN - Sandvik Coromant 7860967
MFR# 7860967ISO/ANSI# SPMT0606-BR 4425Cat# SPMT0606-BR 4425Series CoroBore® 111
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 7860967 is a SPMT0606-BR 4425 solid carbide indexable insert, grade 4425, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerBR
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0236
Cutting directionNeutral
Inscribed circle0.2362
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size code0606
Insert styleSPMT
Iso codeSPMT0606-BR 4425
Manufacturers catalog numberSPMT0606-BR 4425
Manufacturer grade4425
Relief angle11
ShapeSquare
Thickness0.1024
