Sandvik Coromant

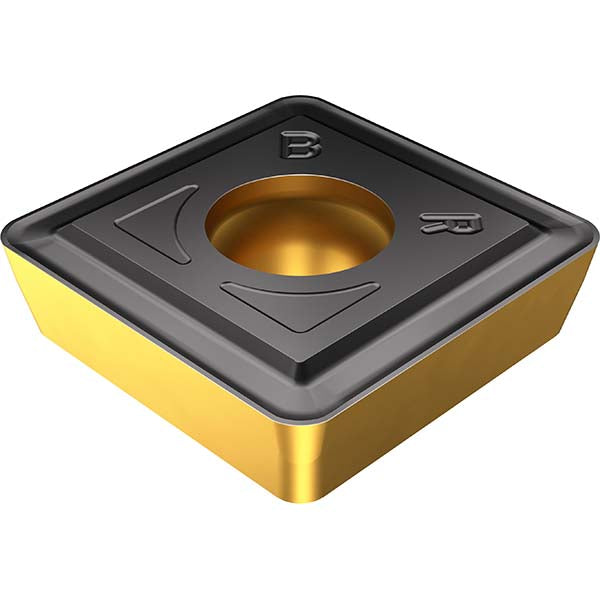

SPMT1212-BR 4425 Solid Carbide Insert, Grade 4425, TiCN/Al2O3/TiN - Sandvik Coromant 7860969
MFR# 7860969ISO/ANSI# SPMT1212-BR 4425Cat# SPMT1212-BR 4425Series CoroBore® 111
$28.88List $37.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade4425
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 7860969 is a SPMT1212-BR 4425 solid carbide indexable insert, grade 4425, TiCN/Al2O3/TiN coated. Suited for steel.
Specifications
Ansi codeSPMT1212-BR 4425
ChipbreakerBR
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0472
Cutting directionNeutral
Inscribed circle0.4980
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert shapeSquare
Insert size code1212
Insert styleSPMT
Iso codeSPMT1212-BR 4425
Manufacturers catalog numberSPMT1212-BR 4425
Manufacturer grade4425
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle11
ShapeSquare
Thickness0.1574
