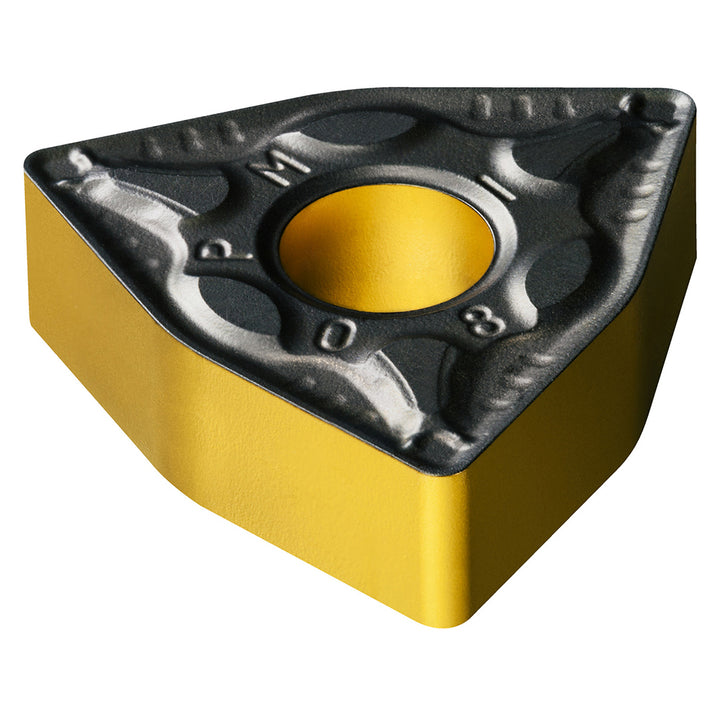

WNMG 06 04 08-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860979
MFR# 7860979ISO/ANSI# WNMG 06 04 08-PM 4425Cat# WNMG 332-PMSeries T-Max P
$16.80List $21.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860979 is a WNMG 06 04 08-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle80
Industry standard numberWNMG 06 04 08-PM 4425
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code0604
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 08-PM 4425
Manufacturers catalog numberWNMG 332-PM
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
