Sandvik Coromant

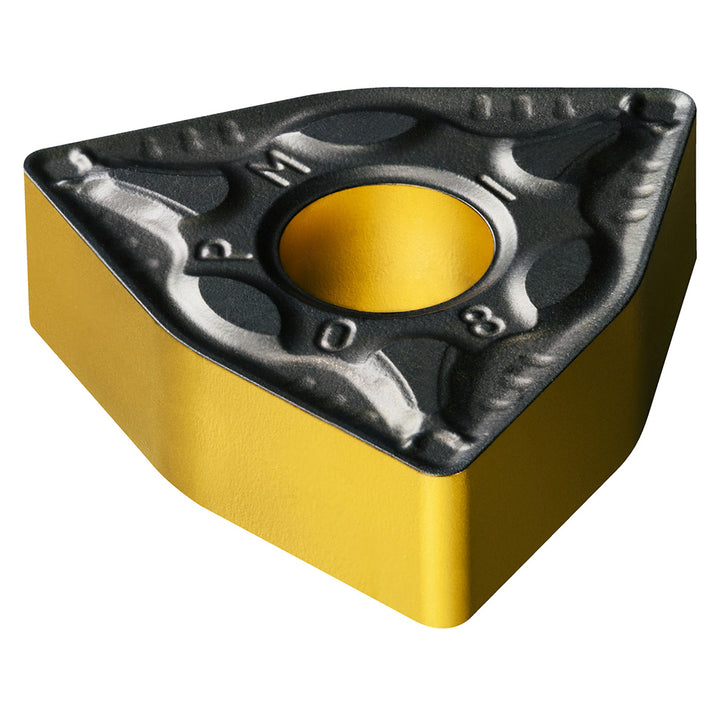

WNMG 08 04 16-PM 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7860993
MFR# 7860993ISO/ANSI# WNMG 08 04 16-PM 4425Cat# WNMG 434-PMSeries T-Max P
$20.54List $26.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7860993 is a WNMG 08 04 16-PM 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Included angle80
Industry standard numberWNMG 08 04 16-PM 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code080416
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 16-PM 4425
Manufacturers catalog numberWNMG 434-PM
Manufacturer grade4425
Relief angle0
Tolerance codeM
