Sandvik Coromant

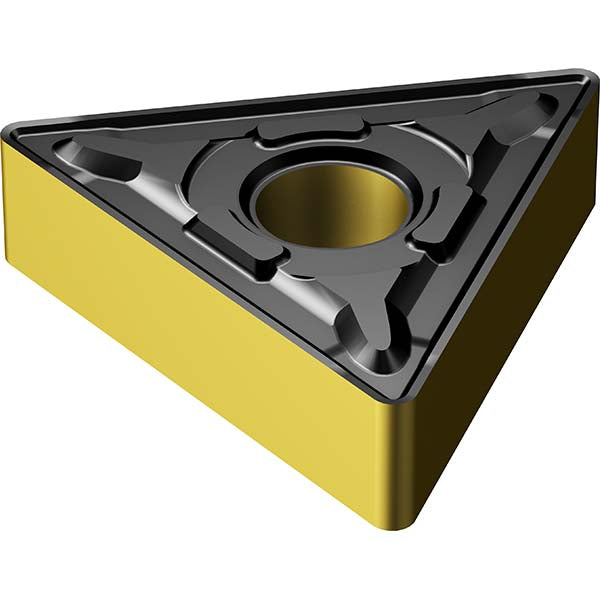

TNMG 16 04 12-PR 4425 Carbide Insert, Grade 4425, TiCN - Sandvik Coromant 7861000
MFR# 7861000ISO/ANSI# TNMG 16 04 12-PR 4425Cat# TNMG 333-PR 4425Series T-Max P
$18.15List $23.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade4425
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7861000 is a TNMG 16 04 12-PR 4425 carbide indexable insert, grade 4425, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0469
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTriangle
Insert size code1604
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 12-PR 4425
Manufacturers catalog numberTNMG 333-PR 4425
Manufacturer grade4425
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
