Sandvik Coromant

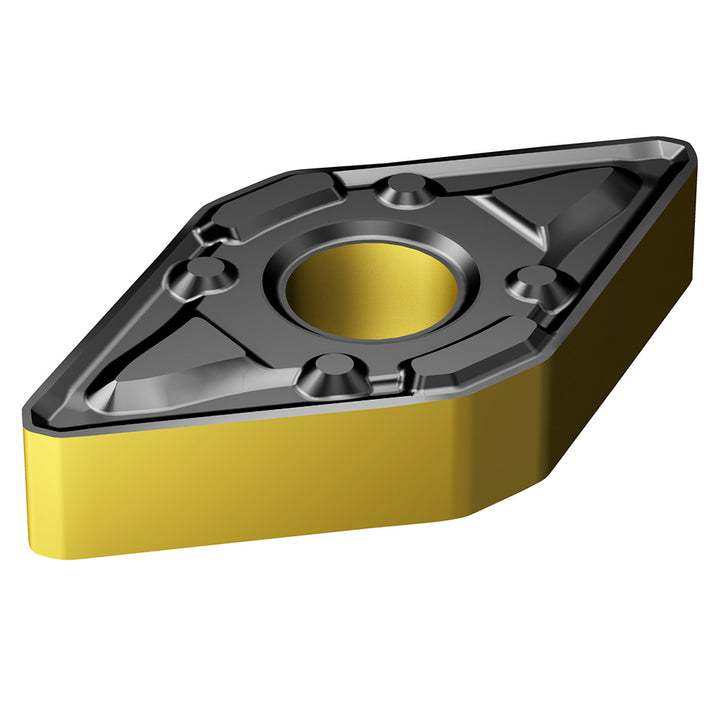

DNMX 15 04 16-WMX 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861008
MFR# 7861008ISO/ANSI# DNMX 15 04 16-WMX 4425Cat# DNMX 434-WMXSeries T-Max P
$27.20List $34.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861008 is a DNMX 15 04 16-WMX 4425 carbide indexable insert, grade 4425, Al2O3 coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/16
Included angle55
Industry standard numberDNMX 15 04 16-WMX 4425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeTrigon
Insert size code150416
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 16-WMX 4425
Manufacturers catalog numberDNMX 434-WMX
Manufacturer grade4425
Relief angle0
Tolerance codeM
