Sandvik Coromant

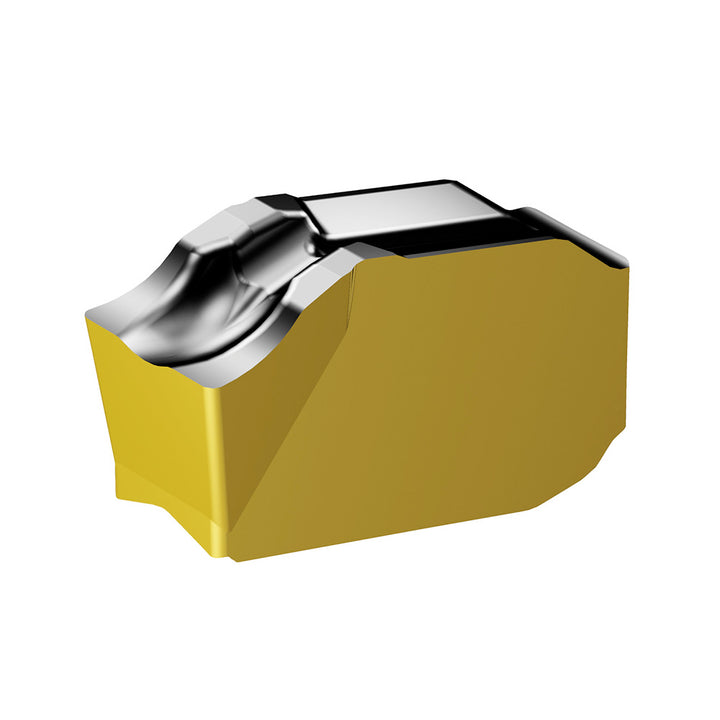

QD-NE-0200-0002-CM 4425 HC Insert, Grade 4425, TiCN/Al2O3/TiN - Sandvik Coromant 7861015
MFR# 7861015ISO/ANSI# QD-NE-0200-0002-CM 4425Cat# QD-NE-0200-0002-CM 4425Series CoroCut QD
$23.46List $30.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4425
MaterialHC
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 7861015 is a QD-NE-0200-0002-CM 4425 hc indexable insert, grade 4425, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCM
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0079
Cutting directionNeutral
Cutting width0.0787
Insert handNeutral
Insert materialHC
Insert size codeE
Insert styleQD-N
Iso codeQD-NE-0200-0002-CM 4425
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberQD-NE-0200-0002-CM 4425
Manufacturer grade4425
Relief angle7.00
