Sandvik Coromant

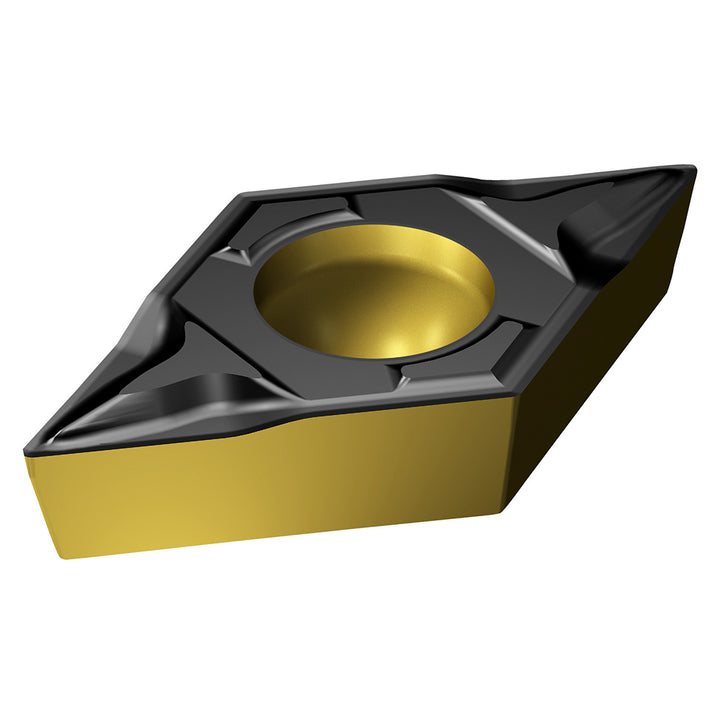

DCMT 07 02 02-PF 4425 Carbide Insert, Grade 4425, Al2O3 - Sandvik Coromant 7861036
MFR# 7861036ISO/ANSI# DCMT 07 02 02-PF 4425Cat# DCMT 2(1.5)0-PFSeries CoroTurn 107
$17.39List $22.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4425
MaterialCarbide
CoatingAl2O3
Description
The Sandvik Coromant 7861036 is a DCMT 07 02 02-PF 4425 carbide indexable insert, grade 4425, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0079
Hole diameter0.1102
Included angle55
Industry standard numberDCMT 07 02 02-PF 4425
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialCarbide
Insert shapeDiamond
Insert size code0702
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 02-PF 4425
Manufacturers catalog numberDCMT 2(1.5)0-PF
Manufacturer grade4425
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
